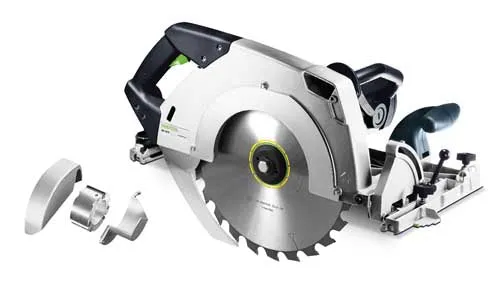

Festool Circular saw HK 132/RS-HK
- Order number: FES561755
-
Model: HK 132/RS-HK
3-in-1. Saw, notch cutter, flattening planer.
The HK 132 is a diverse all-round tool. It impresses as a first-class hand-held saw with a cutting depth of 132 mm, as well as first class notch cutter or reliable hand-held planer. In conjunction with the conversion set, the change from one function to another is effected in a flash. Together with the special sandwich saw blade it is also suitable as a construction site saw for sawing sandwich panels.
3-in-1. Saw, notch cutter, flattening planer.
Strengths and benefits
- Precise guidance via large base-plate
- Trouble-free retraction control of the movable guard, particularly of benefit for mitre cutting
- Optimum amount of force/control from the operator via rear pistol grip which is in the cutting plane
- Accurate, fixed adjustment for mitre-cutting up to 60
- Drive spindle with triple bearings for high stability and long life
- Electronic convenience: Soft start, constant speed, overload protection and coil temperature monitoring
- Stable and exact guidance by means of the guide system: parallel fence, guide plate extension, parellel fence for guide rail
Main areas of use
- Milling machine conversion set: Creating notches with maximum cutting depth of 38 mm
- Chop, mitre, rip and jack-rafter cuts in wood and insulating materials up to 132 mm material thickness
Items included
circular saw blade WOOD STANDARD HW 350 x 3, 5 x 30 W24, rip fence combined with guide plate exion, 10 m power cord, RS-HK 160 x 80 milling set, in carton
Warranty all-inclusive
Features
Strengths and Benefits
- Precise guidance via large base-plate
- Trouble-free retraction control of the movable guard, particularly of benefit for mitre cutting
- Optimum amount of force/control from the operator via rear pistol grip which is in the cutting plane
- Accurate, fixed adjustment for mitre-cutting up to 60
- Drive spindle with triple bearings for high stability and long life
- Electronic convenience: Soft start, constant speed, overload protection and coil temperature monitoring
- Stable and exact guidance by means of the guide system: parallel fence, guide plate extension, parellel fence for guide rail
Product Application
- Milling machine conversion set: Creating notches with maximum cutting depth of 38 mm
- Chop, mitre, rip and jack-rafter cuts in wood and insulating materials up to 132 mm material thickness
Scope of Delivery
circular saw blade WOOD STANDARD HW 350 x 3, 5 x 30 W24, rip fence combined with guide plate extension, 10 m power cord, RS-HK 160 x 80 milling set
Accessories
Technical Data
| Drive type Mains |
| Power consumption 2300 watt |
| Idle engine speed 2200 RPM |
| Cutting depth 0 , 90 50 - 132 mm |
| Cutting depth at 45 /60 85/50 mm |
| Mitre cuts 0 - 60 |
| Weight 18 kg |
| Max. routing depth 0 - 38 mm |
| Max. routing width 80 mm |
Package Dimensions
- Logistic Weight: kg
- Package L X W X H: cm X cm X cm
- Package Volume: dm3
Scope of Delivery
circular saw blade WOOD STANDARD HW 350 x 3, 5 x 30 W24, rip fence combined with guide plate extension, 10 m power cord, RS-HK 160 x 80 milling set
