FEATURES
Purpose-built design
Designed and engineered to store vaccines and other sensitive materials under stable temperature conditions
Designed and engineered to store vaccines and other sensitive materials under stable temperature conditions
Adjustable temperature
Interior is pre-set to 5ºC, with an adjustable control range from 2 to 10ºC
Interior is pre-set to 5ºC, with an adjustable control range from 2 to 10ºC
Temperature alarm
Visual and audible alarms alert if the interior temperature rises or falls out of set range
Visual and audible alarms alert if the interior temperature rises or falls out of set range
Complete stainless steel construction
Interior and exterior are entirely constructed from stainless steel for lasting durability and easy cleanup
Interior and exterior are entirely constructed from stainless steel for lasting durability and easy cleanup
Glass door
Full display of the interior, with an anti-condensate door frame heater to ensure a clear view
Full display of the interior, with an anti-condensate door frame heater to ensure a clear view

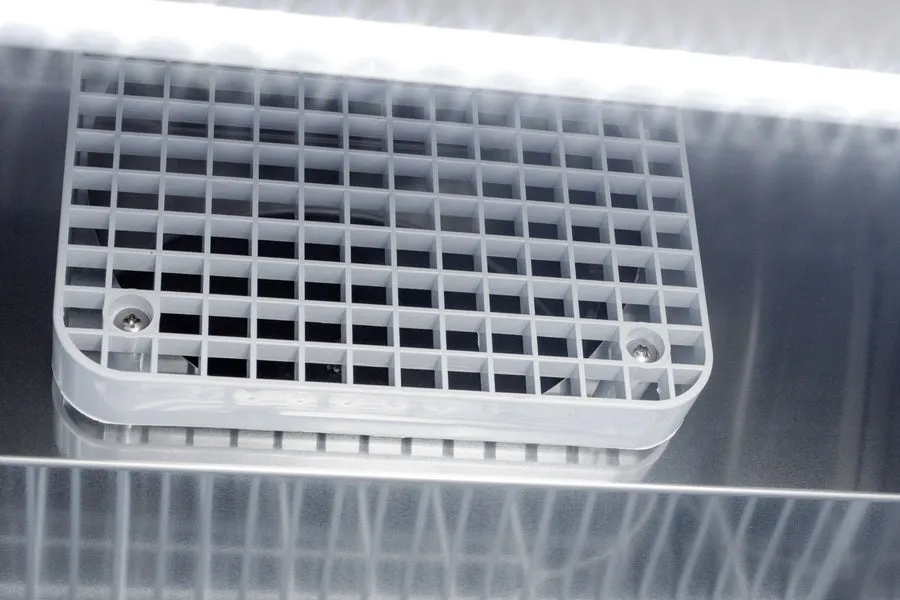

Forced air cooling
Top-mounted commercial fan ensures rapid temperature recovery
Top-mounted commercial fan ensures rapid temperature recovery
Automatic defrost with adjustable cycle defrost
Adjustable cycle defrost operation ensures the unit avoid temperature spikes and ice buildup
Adjustable cycle defrost operation ensures the unit avoid temperature spikes and ice buildup
Self-closing door
Closes to save energy but will remain open when the door is opened at a 90º angle for easier loading
Closes to save energy but will remain open when the door is opened at a 90º angle for easier loading
Open door alarm
Alarm will beep 3 times if the door is left open for 30 seconds, 5 times at 60 seconds, and will sound continuously if the door is open for more than 5 minutes
Alarm will beep 3 times if the door is left open for 30 seconds, 5 times at 60 seconds, and will sound continuously if the door is open for more than 5 minutes
6 inch casters
Ships with a set of casters (2 locking) for optional user installation
Ships with a set of casters (2 locking) for optional user installation

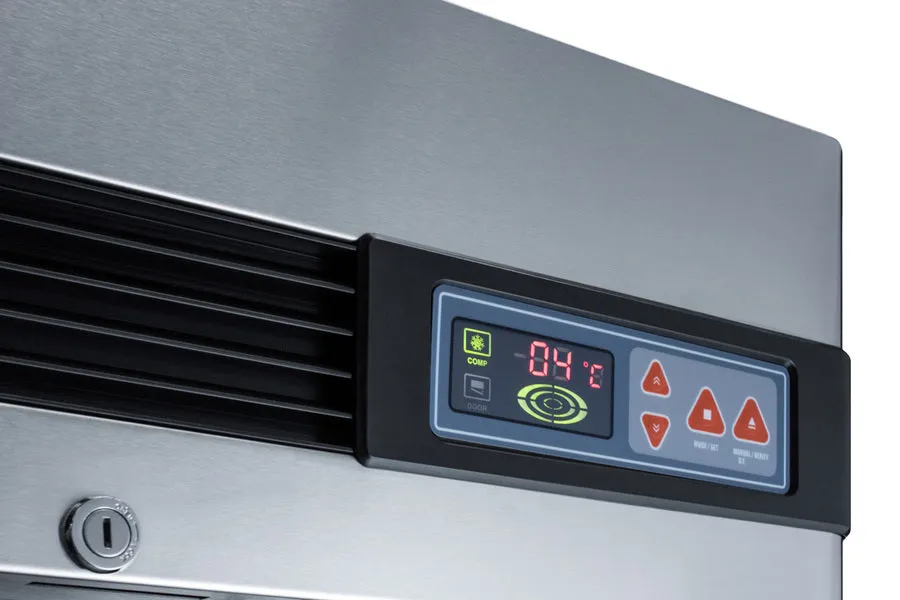

Microprocessor control panel
Digital controls with a large LED readout in Celsius or Fahrenheit for intuitive temperature management
Digital controls with a large LED readout in Celsius or Fahrenheit for intuitive temperature management
Min/max display
Control panel provides a readout of the low and high temperatures in 15 minute increments
Control panel provides a readout of the low and high temperatures in 15 minute increments
Factory-installed lock
Keyed lock conveniently located towards the top of the door for added security (2 keys included)
Keyed lock conveniently located towards the top of the door for added security (2 keys included)

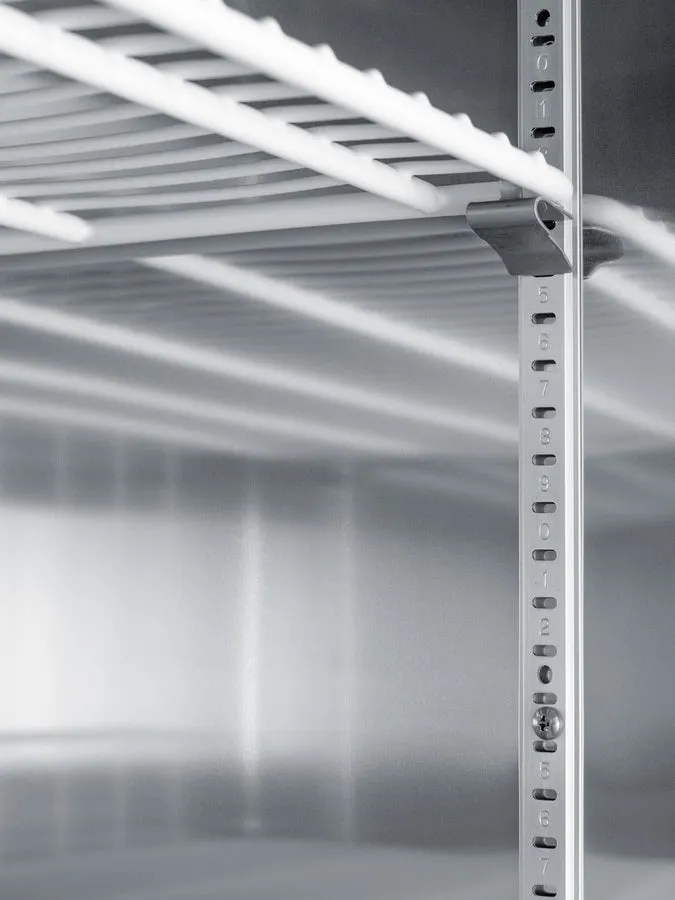

Adjustable plastic-coated wire shelves for improved circulation
Multiple shelf positions spaced at 1/2" to allow flexible adjusting to support smaller items
Multiple shelf positions spaced at 1/2" to allow flexible adjusting to support smaller items
Interior light
Energy efficient LED lighting with internal on/off switch
Energy efficient LED lighting with internal on/off switch
Large capacity
23 cubic feet of storage space inside
23 cubic feet of storage space inside
Sealed back
Space-saving design that ensures easier cleanup
Space-saving design that ensures easier cleanup
Magnetic door gasket
Quality door gaskets ensure a tight seal for energy savings and improved performance
Quality door gaskets ensure a tight seal for energy savings and improved performance
Condenser cleaning alarm
In order to prevent dust from impeding performance, this unit is equipped with audible and visual alarm that reminds you to clean the condenser every 6 months
In order to prevent dust from impeding performance, this unit is equipped with audible and visual alarm that reminds you to clean the condenser every 6 months
Extended warranty
2 years parts and labor/5 years compressor
2 years parts and labor/5 years compressor
Commercially approved
Commercial construction meeting UL commercial listing standards
Commercial construction meeting UL commercial listing standards
Eco-Friendly
Using environmentally friendly hydrocarbons refrigerants for a greener footprint
Using environmentally friendly hydrocarbons refrigerants for a greener footprint
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
Environmentally friendly design without ozone-damaging chemicals
DESCRIPTION

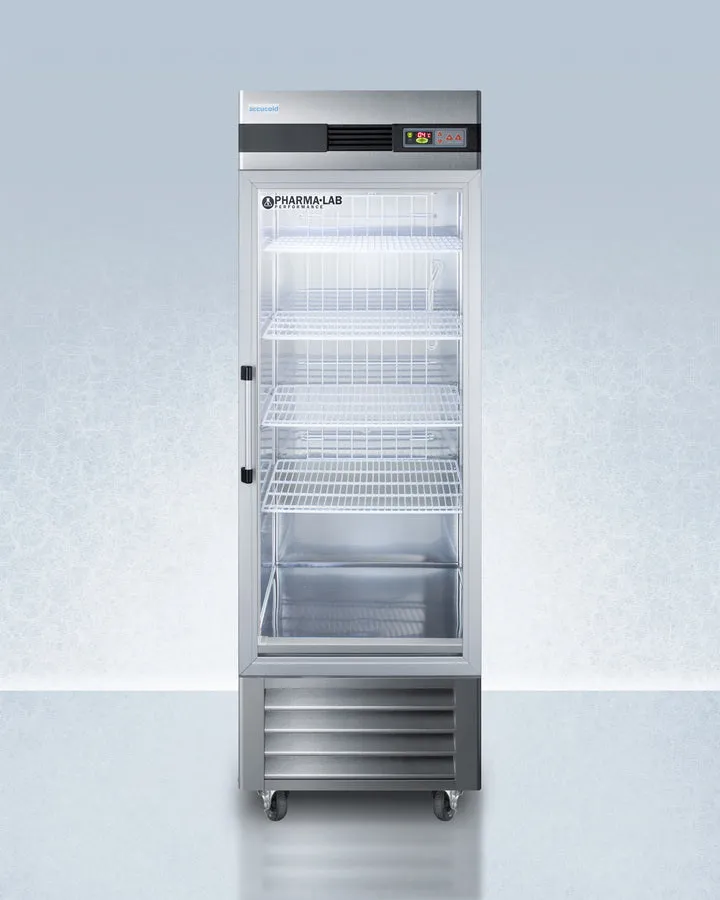

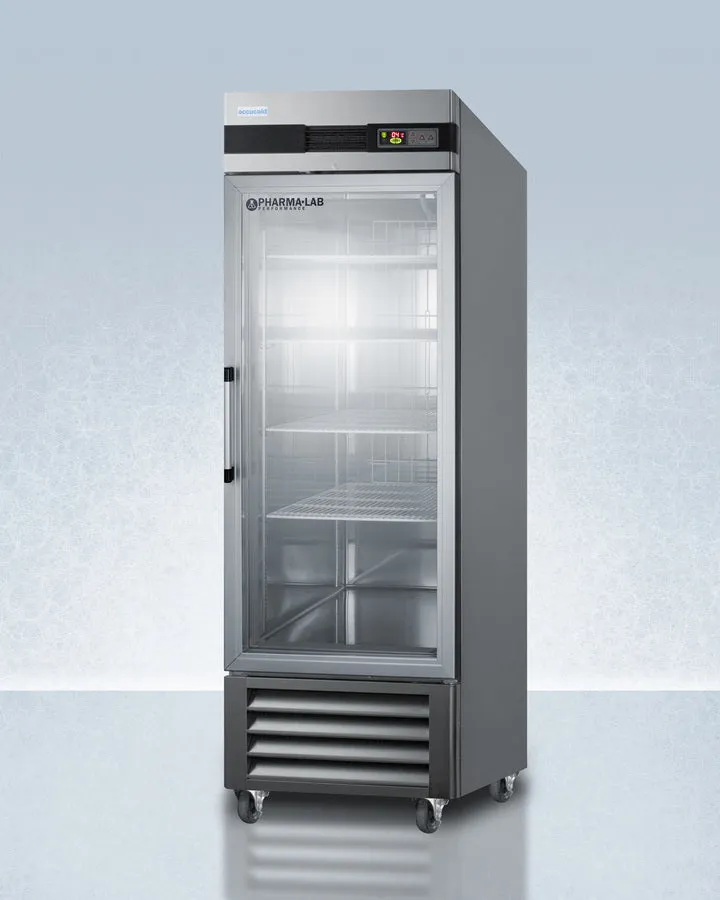

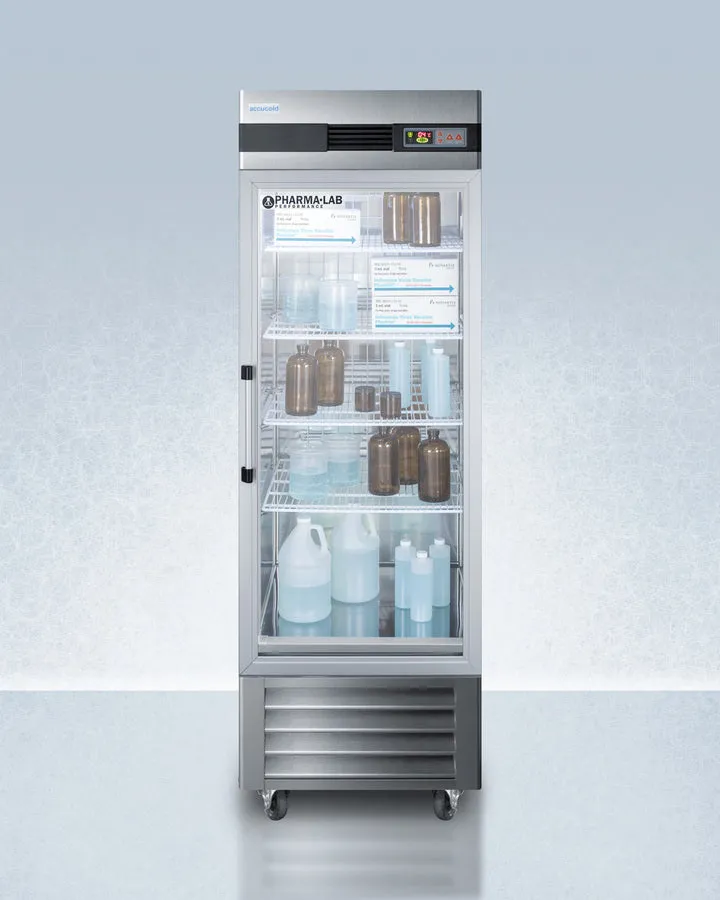

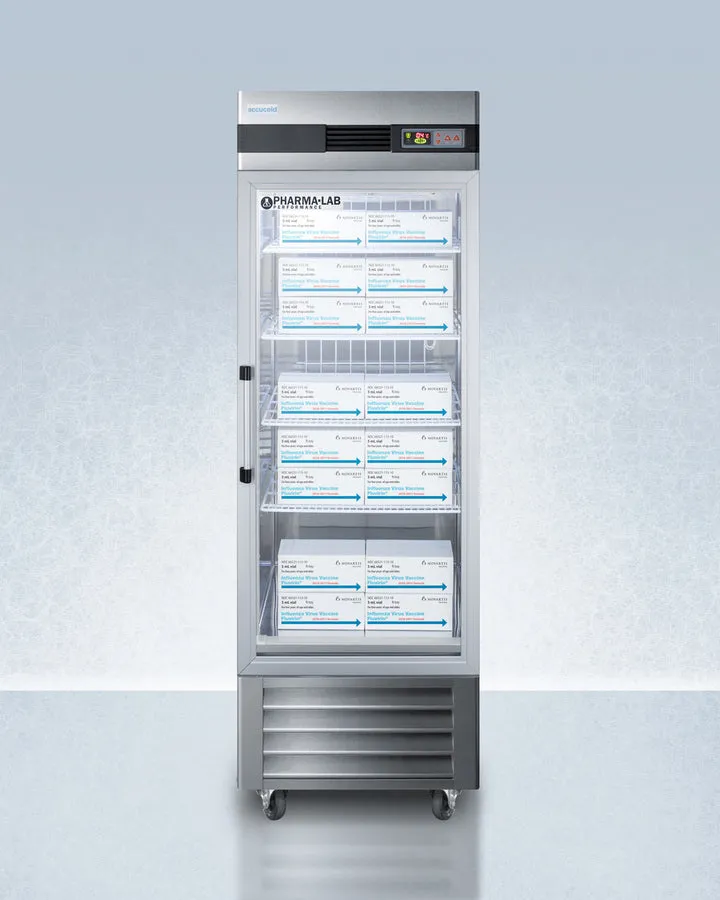

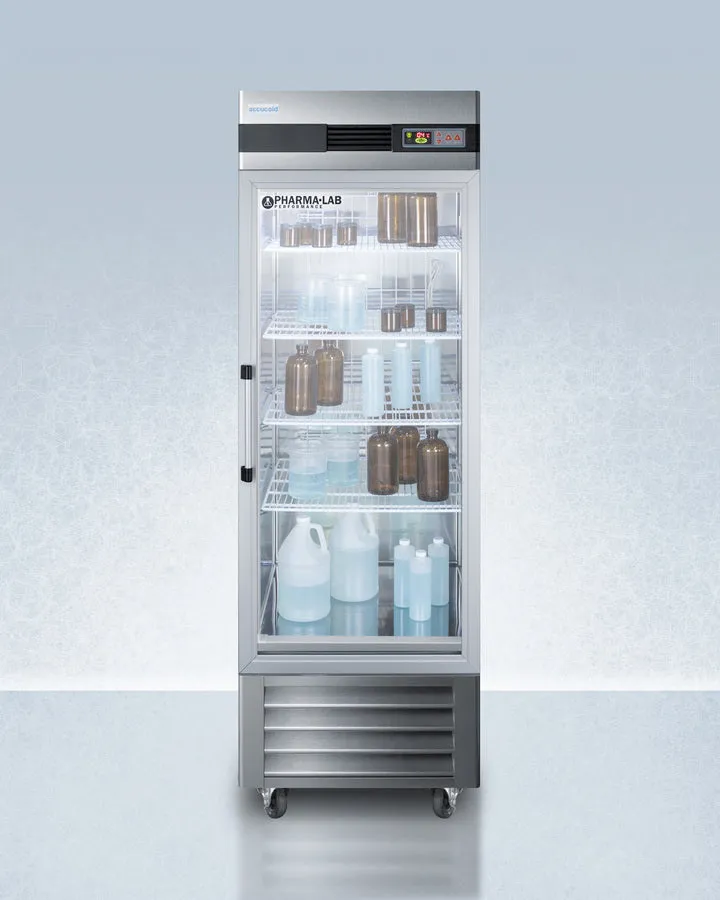

Accucold's Pharma-Lab Performance Series features reach-in
refrigerators and matching freezers designed and purpose-built
to meet the demanding needs for pharmacy, medication, vaccine,
laboratory, and life science applications.The ARG23ML is a 23 cu.ft. glass door all-refrigerator with an
adjustable control range from 2 to 10ºC. The microprocessor
temperature controller features a large digital LED display
viewable in Celsius or Fahrenheit, making it easy for staff to
manage and monitor the temperature. The unit is equipped with
an air sensor for rapid control response and a product sensor
for a more accurate reading of the interior, including a
display of the min/max temperature in 15 minute increments
The audible and visual temperature alarm sounds if the unit
rises or falls above a user-set range. Additional alarms
include a power failure alert, door open alarm, and a condenser
cleaning reminder. Inside, the ARG23ML utilizes adjustable cycle defrost operation
to avoid temperature spikes, with a top-mounted forced air
cooling system to ensure rapid temperature recovery.

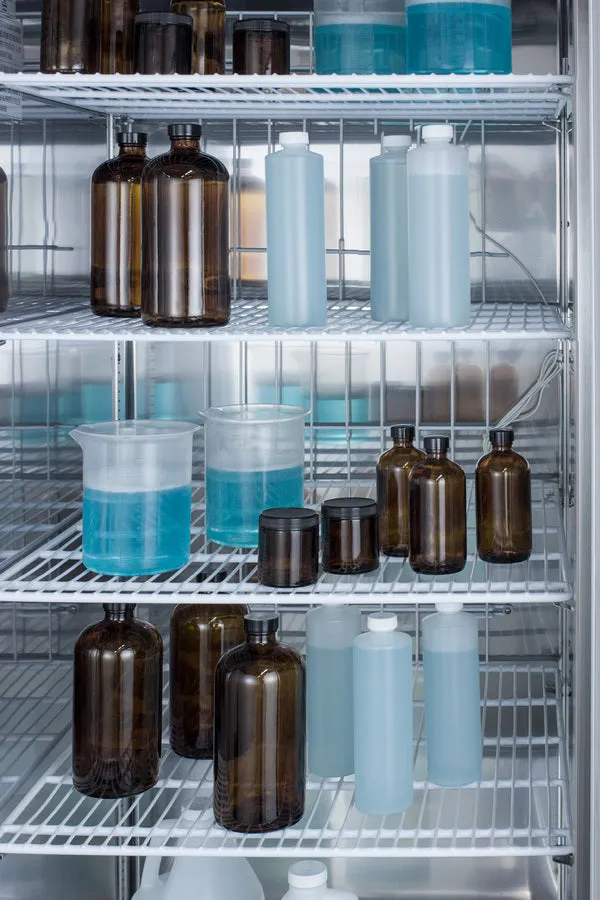

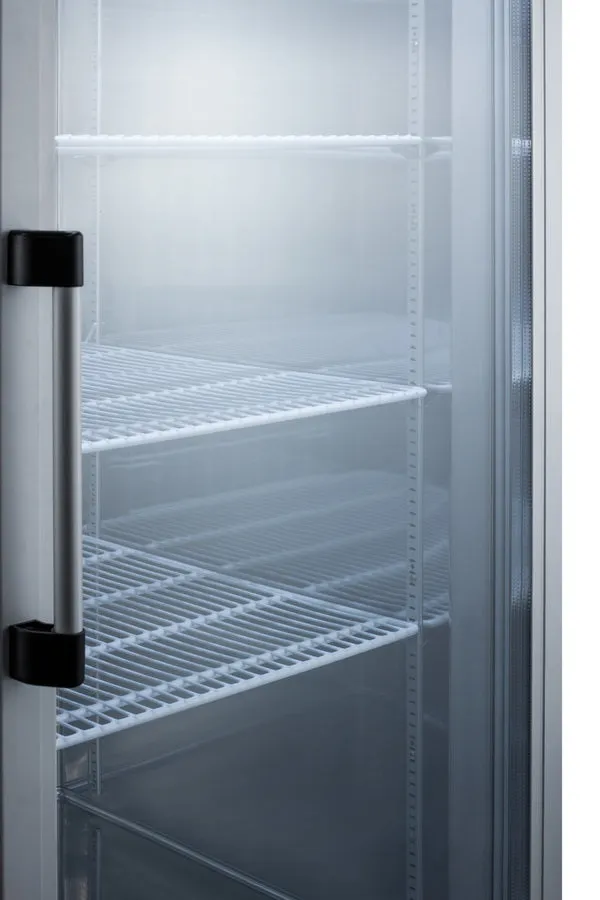

Four vinyl-coated wire shelves on cantilevered clips allow you
to accommodate virtually any sized item. The LED lighting
displays automatically when the door is open, providing a
full and energy efficient display.The ARG23ML features a durable stainless steel cabinet and
interior, with a sealed back for easier cleanup. The double
pane tempered glass door provides a full display of the
interior. We include a set of casters (2 locking) for optional
installation. A factory-installed lock offers added security,
with two keys included for your facility. Magnetic door gaskets
ensure a strong seal. The door is self-closing to help protect
contents, but will remain open at 90º for easier loading. Designed with hydrocarbon refrigerant, the ARG23ML provides an
energy efficient solution to large capacity storage. This unit is Pyxis, Omnicell, and AcuDose RX compatible and meets NSF-7 commercial standards. For a matching frost-free freezer, see the AFS23ML.
SPECIFICATIONS
Overview | |
---|---|
Height of Cabinet | 83.75" (213 cm) |
Width | 27.5" (70 cm) |
Depth | 31.0" (79 cm) |
Depth with Handle | 32.75" (83 cm) |
Depth with door at 90° | 56.5" (144 cm) |
Capacity | 23.0 cu.ft. (651 L) |
Defrost Type | Automatic |
Door | Glass |
Cabinet | Stainless Steel |
US Electrical Safety | UL |
Canadian Electrical Safety | ULC |
Sanitation | ETL-S |
Amps | 7.5 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 282.0 lbs. (128 kg) |
Shipping Weight | 292.0 lbs. (132 kg) |
Parts & Labor Warranty | 2 Years |
Compressor Warranty | 5 Years |
Refrigerator Features | |
Door Swing | RHD |
Reversible | No |
Shelf Type | Wire |
Shelf Qty | 4 |
Adjustable Shelves | Yes |
Thermostat Type | Digital |
Fan Type | Interior |
Refrigerant Type | R290a |
Refrigerant Amount | 2.5oz. |
High Side PSI | 290.0 |
Low Side PSI | 155.0 |
Wheel Qty | 4 |
Interior Light | Yes |
Temperature Range | 2 to 10ºC |
Dimensions | |
Interior Height | 51.5" (131 cm) |
Interior Width | 23.5" (60 cm) |
Interior Depth | 27.0" (69 cm) |
