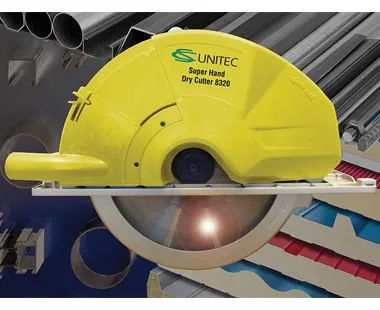

LARGEST PORTABLE DRY CUTTING SAW ON THE MARKET
Fast, portable, burr-free cutting of metal plates, pipes, profiles and more… without coolant

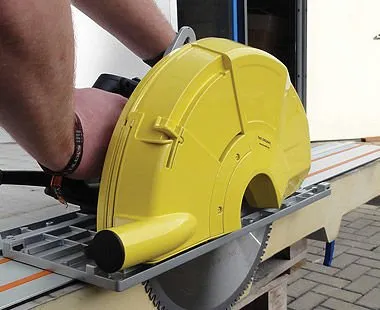

Super Hand-held Accessory: Guide Rail with Clamping System - 2 x 23-5/8" Rails
Features:
- Largest portable dry metal cutting saw on the market
- Dry cuts steel, sandwich panels, I-beams, trapezoidal sheets, conduits, metal pipes and more – without coolant, with no deburring necessary
- High-quality tungsten carbide-tipped blade
- Side-mounted tilt tray for disposal of chips
- Motor protection with optical overload indicator
- Dust collection port for clean operation
12-5/8" diameter, cut up to 4-3/4" depth and 3/8" thick steel plate
- SPECIFICATIONS
- OPTIONAL RAIL GUIDE
- SAW BLADES
- VIDEO
| Part No. | 608270 U |
|---|---|
| Motor Power | 16 Amp/110V* |
| Blade Diameter | 12-5/8" (320mm) |
| Max. Depth of Cut | 4-3/4" (120mm) |
| Speed (Free) | 1,400 RPM |
| Arbor Size | 1" |
| Blade Part No. | 608276 (12-5/8" dia.) |
| Blade No. of Teeth | 84T |
| Weight | 21 lbs |
| *230V also available - Part No. 608270 | |
Standard equipment includes a saw blade (Part No. 608276).
Optional 12-5/8" Saw Blade for Model 8320 SHDC
P/N 608276SI, 84T, for stainless steel. Blade specially coated, increasing cutting life by 2.5X
